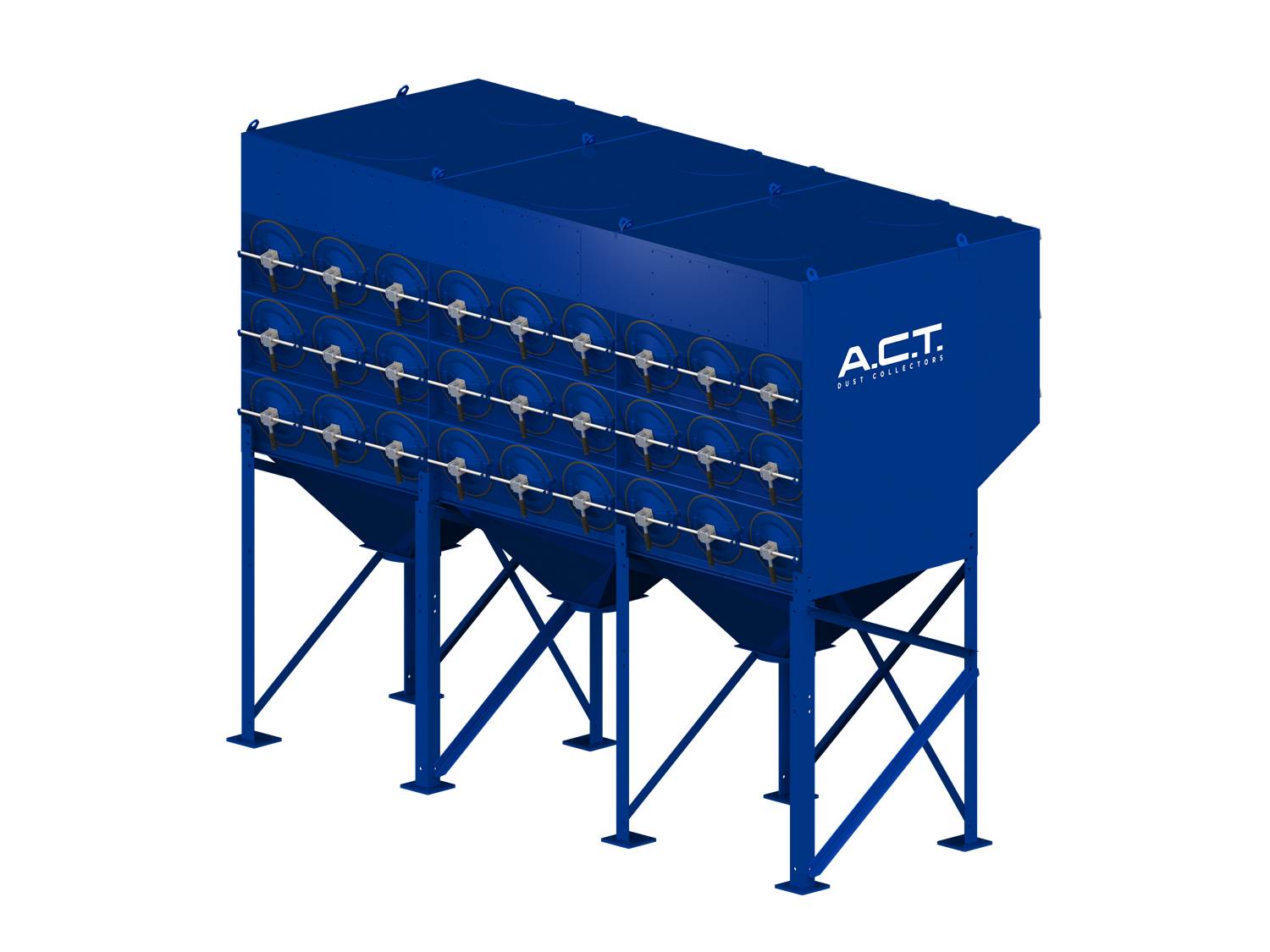

ACT 3-54 New Cartridge Dust Collector
- 30,000 CFM @ 12″ S.P. Cartridge Filter System with 54 cartridges.
- 254 sq. ft. of media each for a total of 13,716 sq. ft. of filter area. 2.18:1 air to media ratio.
- Filters are 99.9% efficient.
- Automatic reverse jet cleaning via compressed air,
- Dwyer pulse control timer board with photohelic pressure gauge.
- 55 Gallon Leg Pack & Drum Lid
- 75HP motor with Twin Cities Fan BCS 402 rated for 30,000 cfm @ 12”
- Arrangement 4 CW rotation Up Blast discharge Class 17
- Magnetic starter not included.
- See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
- Options Available – Call for Quote;
- Backdraft Damper
- Abrasive Inlet Plenum
- Hepa After-Filter
- Slide Gate
- In-Line Spark Trap
- Solenoid Heater Kit
- Rotary Air Lock Adaptor
- Rotary Air Lock
- Explosion Vents
