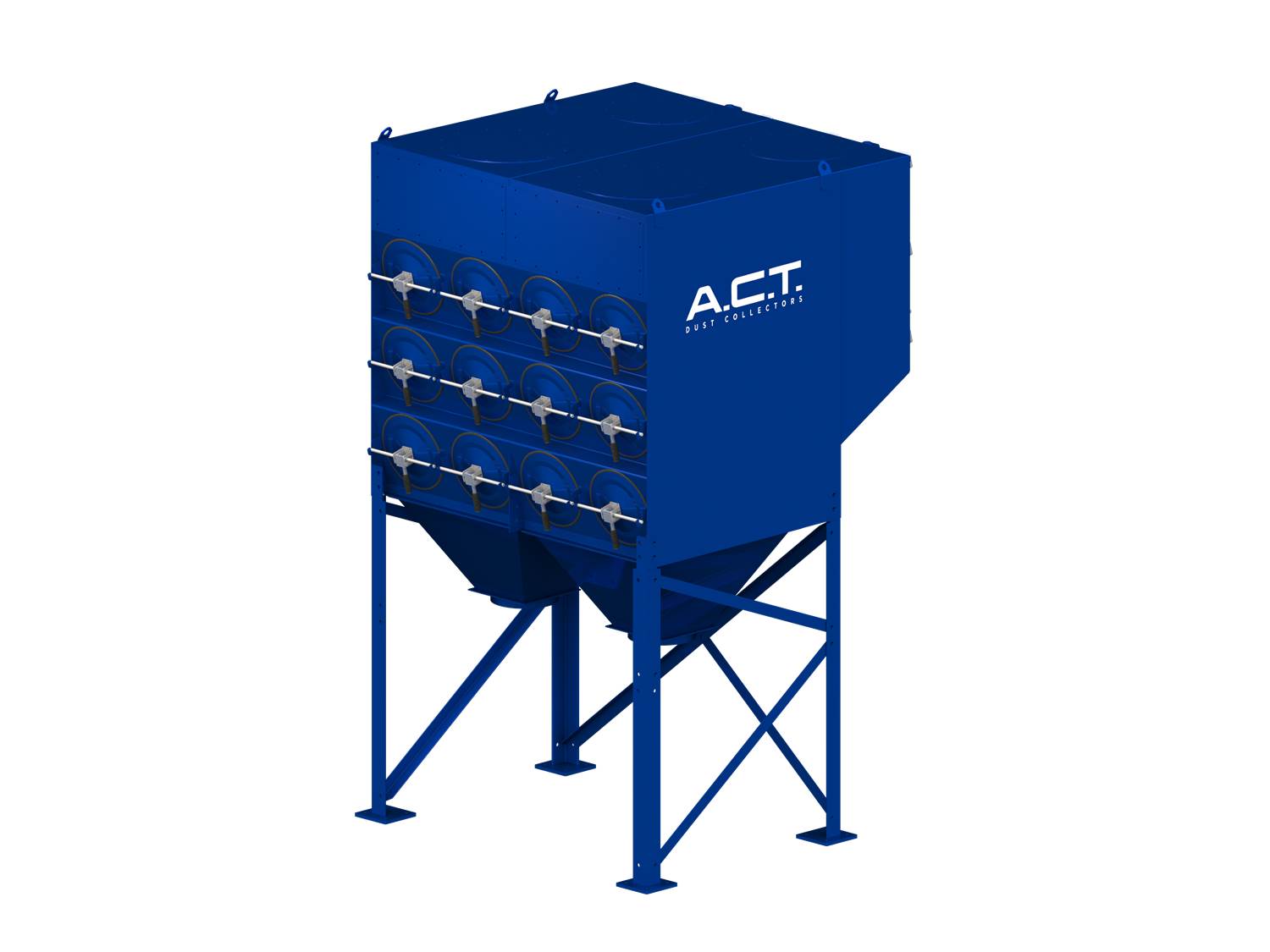

ACT 3-24 New (10,400 CFM) Cartridge Dust Collector

Call for Quote - (231) 894-0333

  • 10,400 CFM
  • Brand New with 5 year manufacturers warranty
  • 208-230/460v 60 cy, 3ph
  • Made in Minnesota
  • Air Cleaning Technology, Inc. is proud to offer the very best in dust collection. The ACT line of downward flow dust collectors is the answer to all of your air quality issues. From welding smoke, to grinding, cutting tables to blast applications, sanding to thermal spray, coating and bulk powders or any process that generates dust, we have the dust collector for you. Our dust collectors have capabilities from 1,000 CFM to 100,000 CFM and up.
SKU: JD-1458 Categories: , , , , , Tags: , , Print
Share Via Email or Social Media:

Description

ACT 3-24 New Cartridge Dust Collector.

  • 10,400 CFM @ 10″ S.P. Cartridge Filter System with 24 cartridges.
  • 254 sq. ft. of media each for a total of 6,096 sq. ft. of filter area. 1.7:1 air to media ratio.
  • Filters are 99.9% efficient.
  • Automatic reverse jet cleaning via compressed air,
  • Dwyer pulse control timer board with photohelic pressure gauge.
  • 55 Gallon Leg Pack & Drum Lid
  • 30HP motor with Direct Drive Twin Cities Fan, top mounted.
  • Magnetic starter not included.
  • See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
  • Options Available – Call for Quote;
    • Silencer
    • Backdraft Damper
    • Abrasive Inlet Plenum
    • Hepa After-Filter
    • Slide Gate
    • Sprinkler
    • Coupler
    • In-Line Spark Trap
    • Solenoid Heater Kit
    • Rotary Air Lock Adaptor
    • Rotary Air Lock
    • Explosion Vents

View Used Cartridge Dust Collectors Here.

Product Literature:
