Used Pneumafil 11.5-320-10 COMPLETE “Super System”

NFPA Compliant 35,000 CFM Baghouse Dust Collector with all the necessary protection components

SKU: JD-1611 Categories: , , , , , , , Tags: , , , , , , Print
Share Via Email or Social Media:

Description

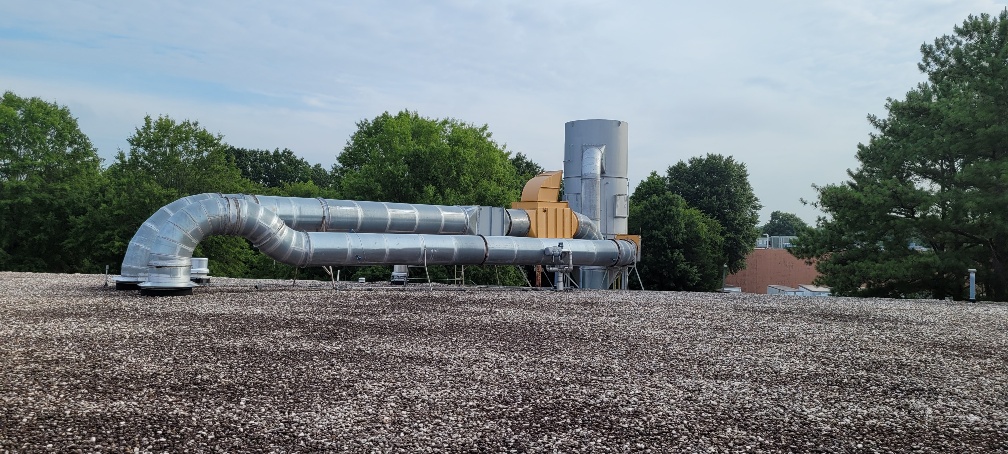

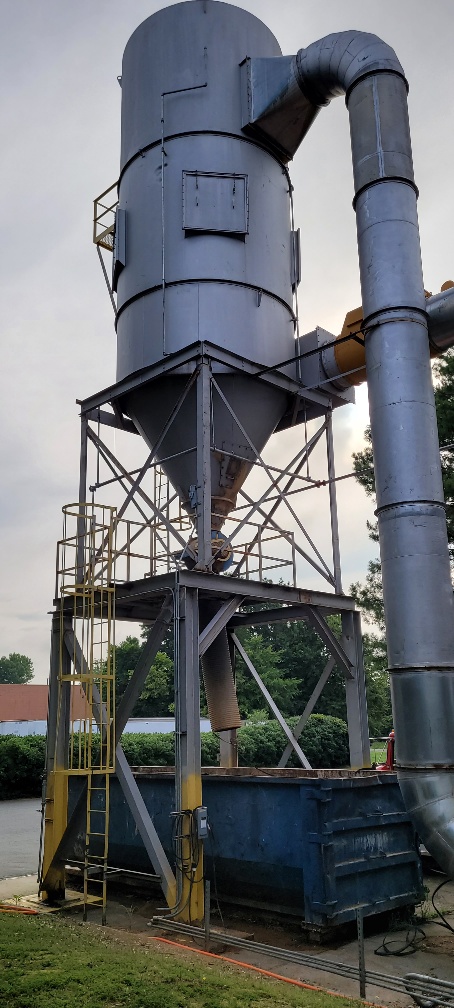

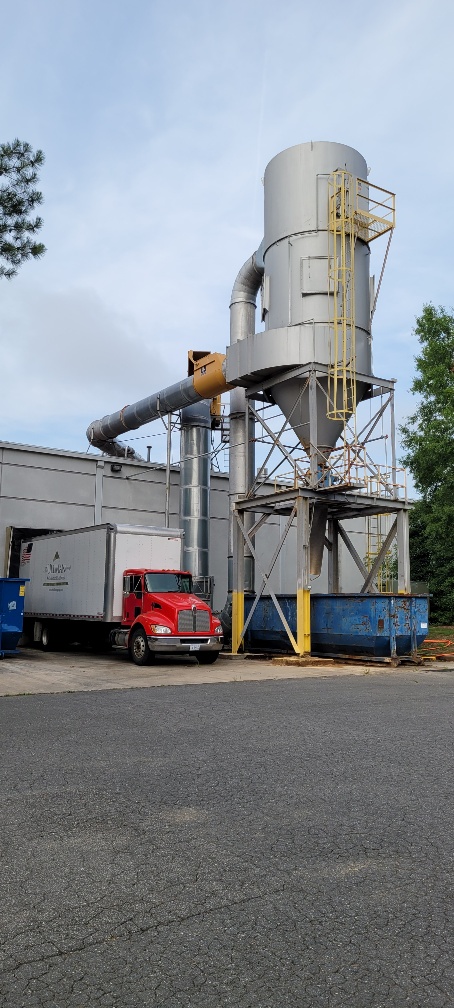

Used Pneumafil 11.5-320-10 Straight Fire Dust Collection System

  • 35,000 CFM @8.5:1 Air-To  Cloth Ratio
  • 4,118 Sq. Ft. Media from (320) Used 10′ Long 16 oz. Polyester Felt Filter Bags

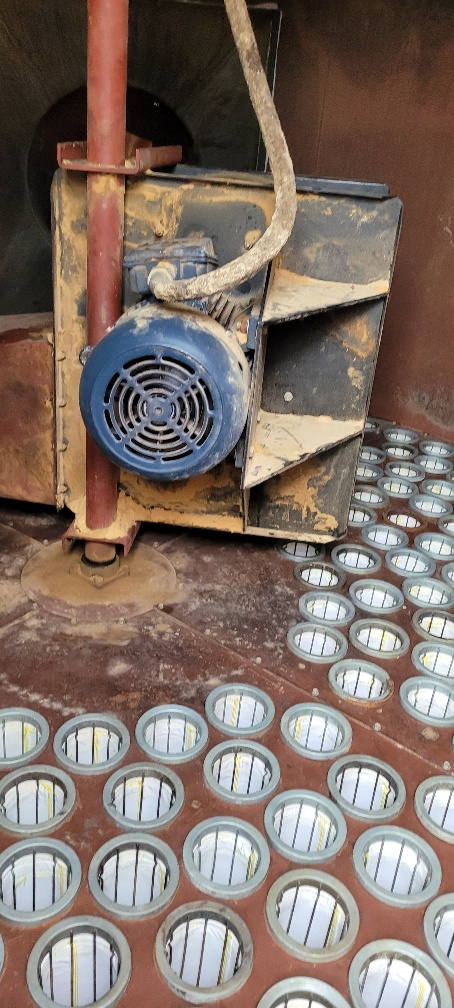

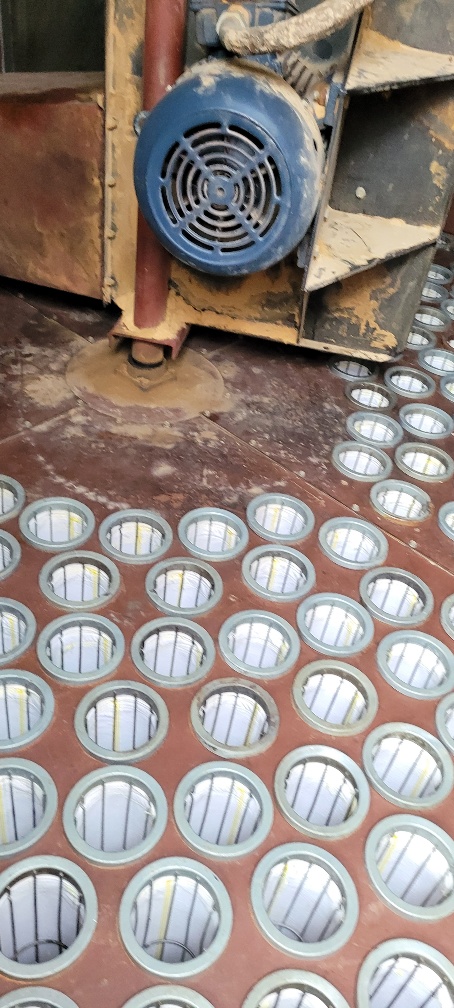

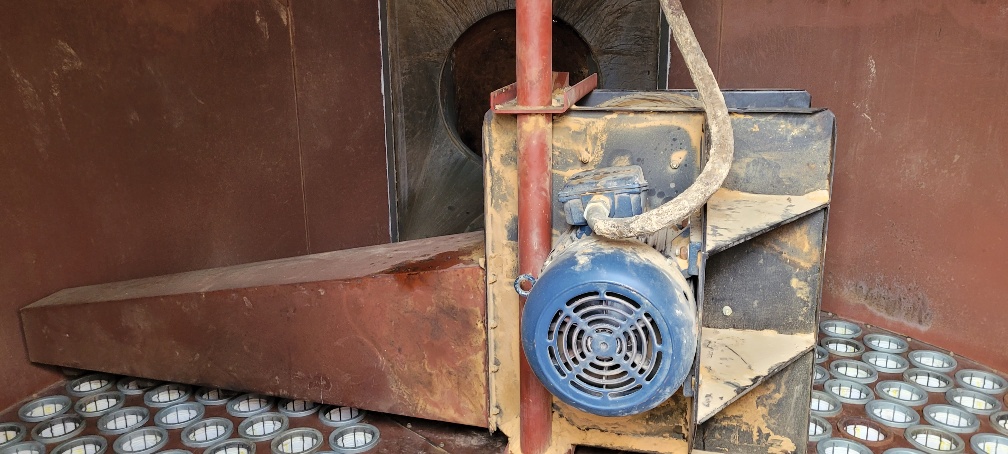

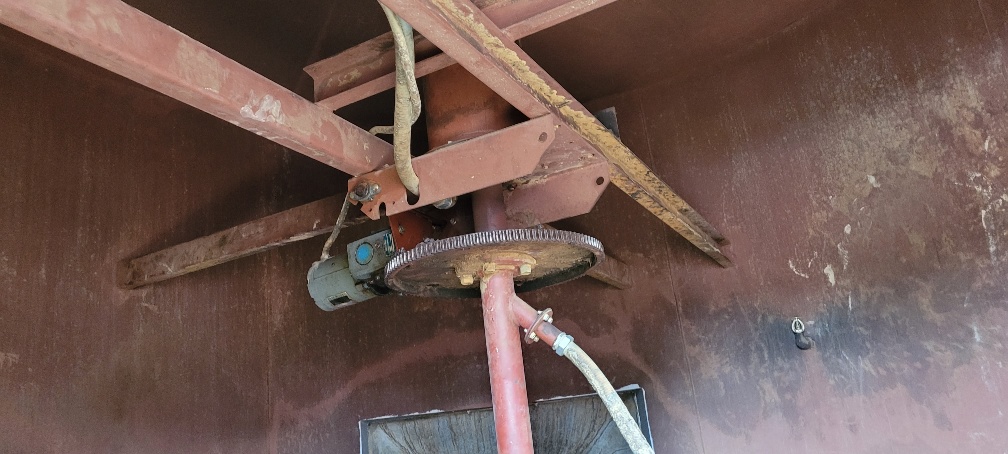

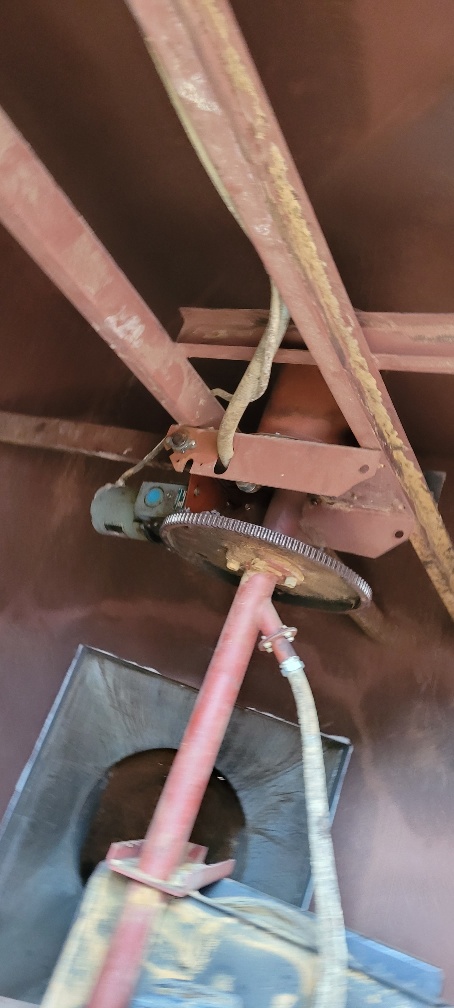

  • Reverse Air Cleaning from blow down fan and sweep arm
  • Clean Air Walk-In Plenum
  • Built-In particle deflector with vortex breakers for abrasive protection of filter bags
  • Explosion Vents
  • 60 degree conical hopper to rotary airlock  discharge
  • Bin Indicator

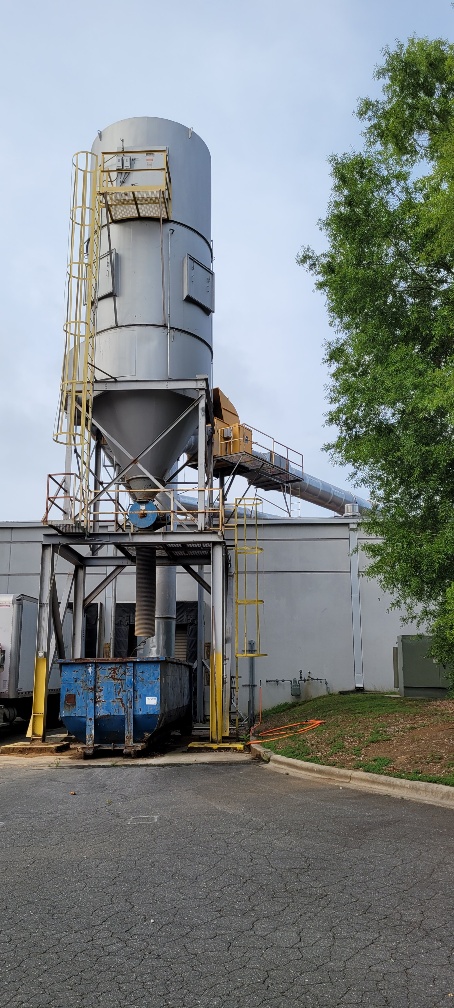

  • Steel support structure atop separate dumpster stand for roll off dumpster
  • Scroll Inlet for cyclonic entry
  • Safety Ladder and Service Platform

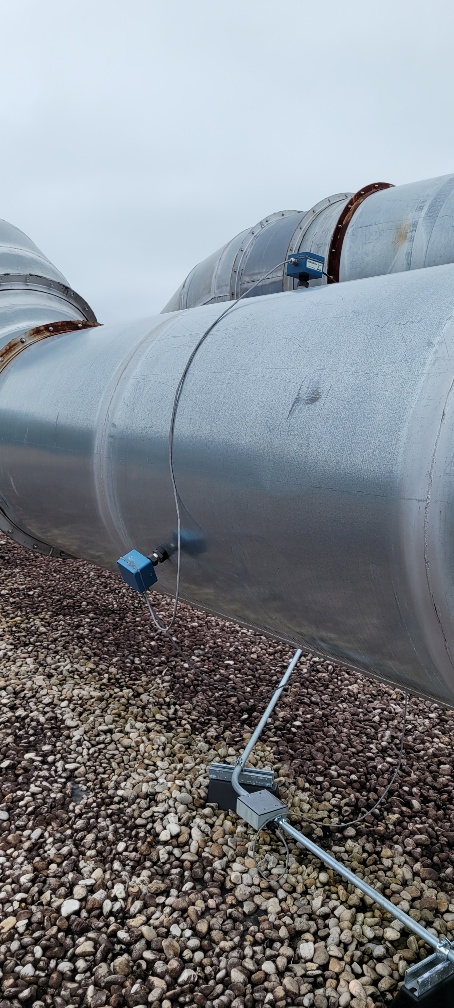

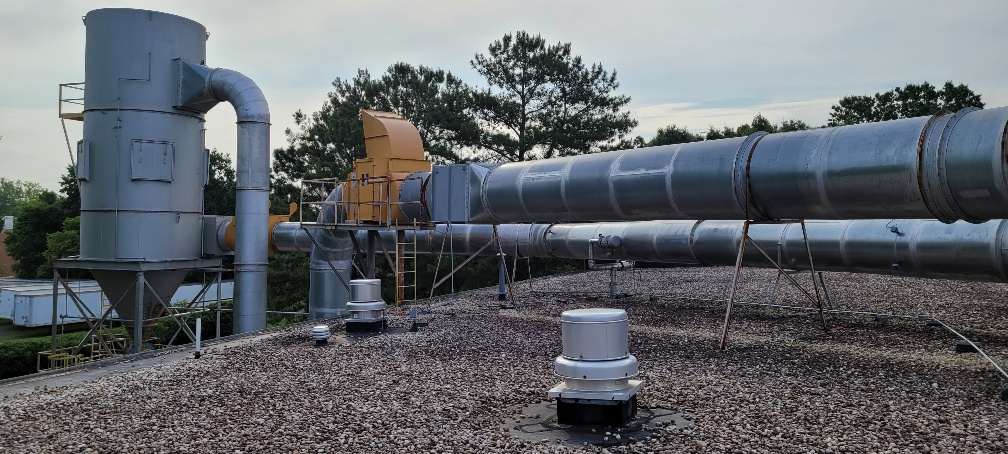

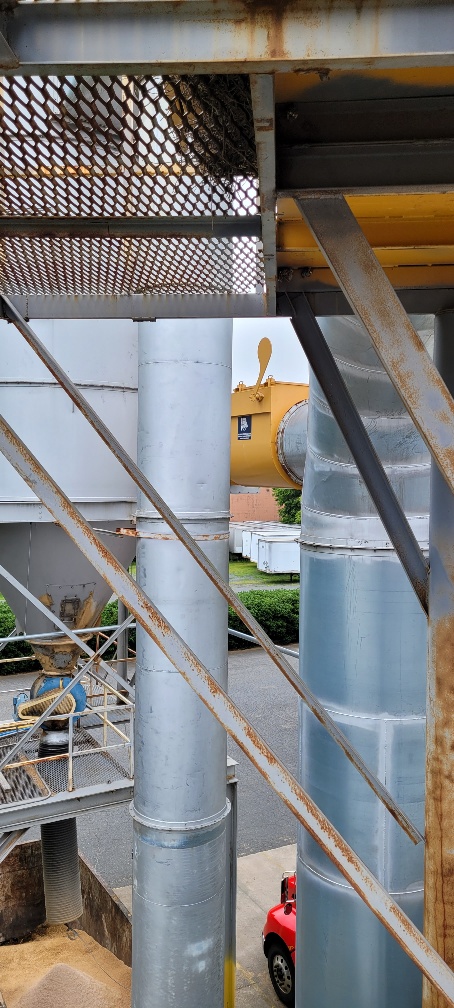

  • Includes square to round transitions, trunk line and return air line

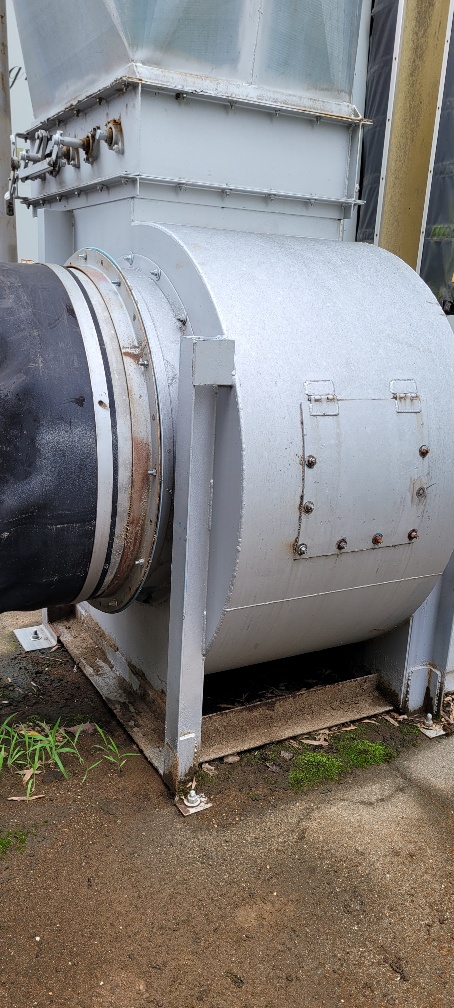

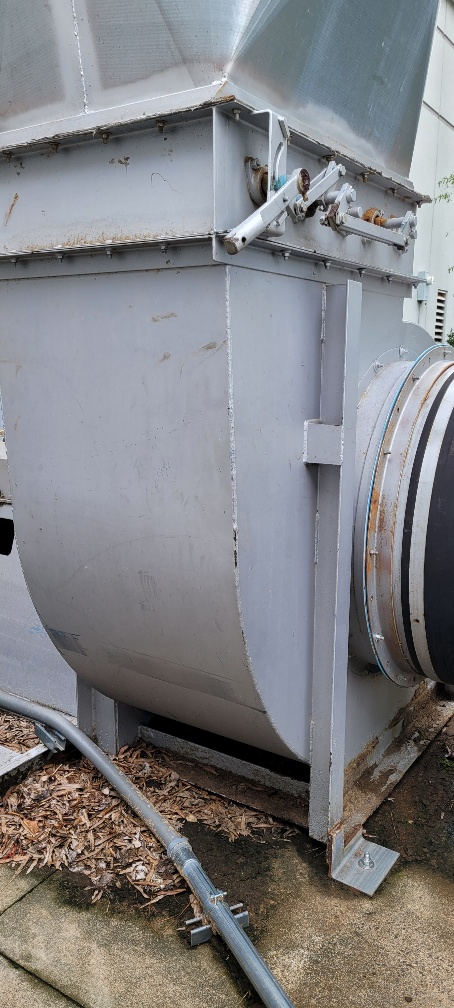

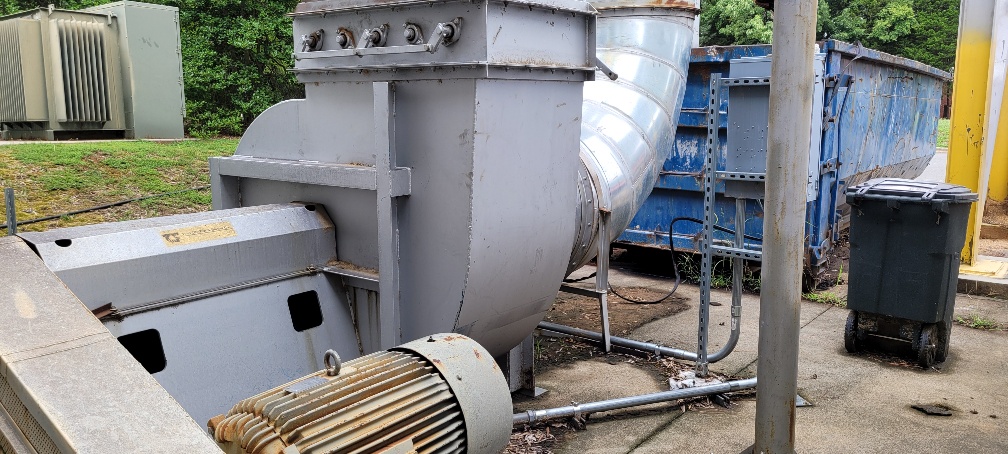

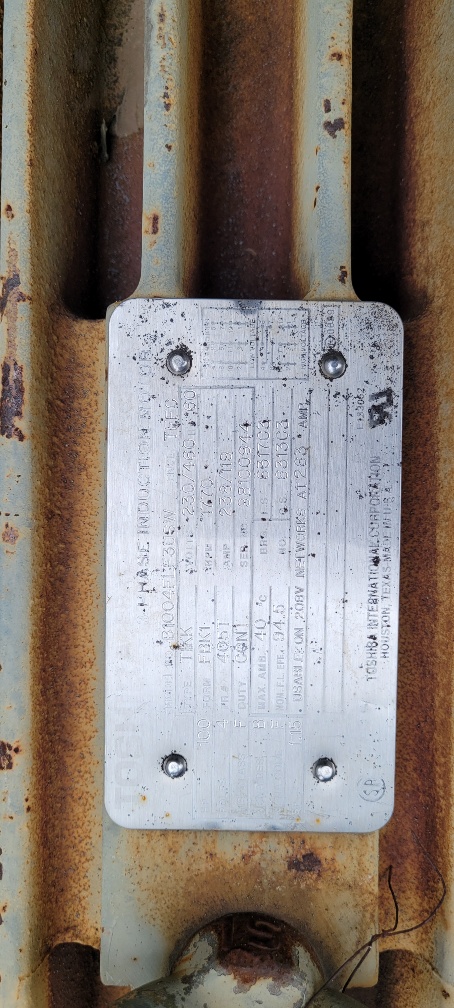

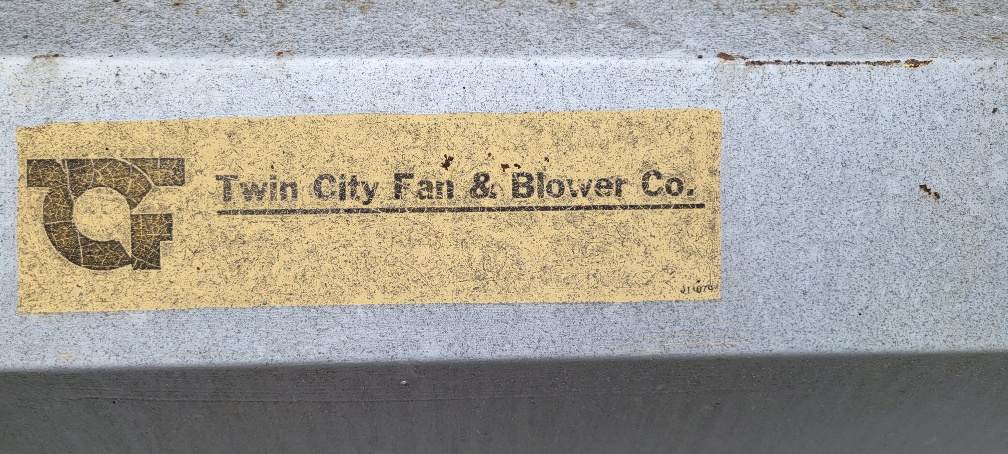

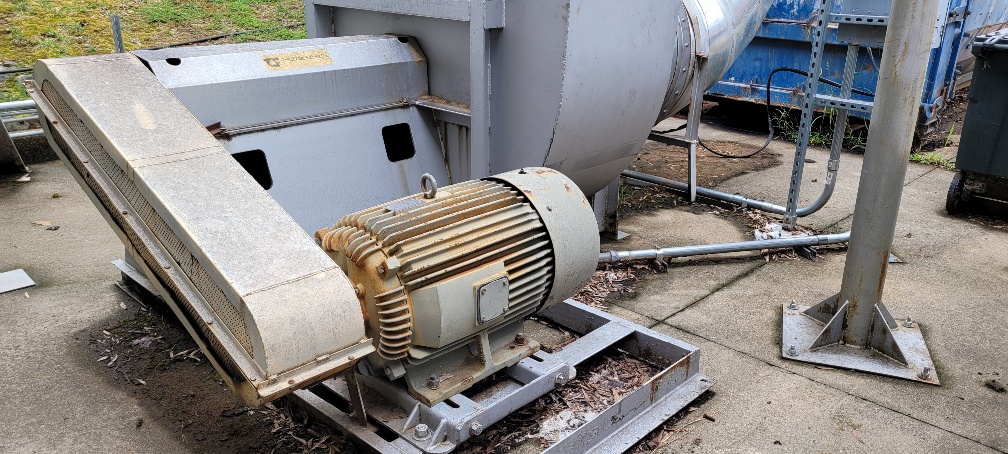

  • 100 HP Twin Cities BI fan set up to 35,000 CFM – Ground Mounted

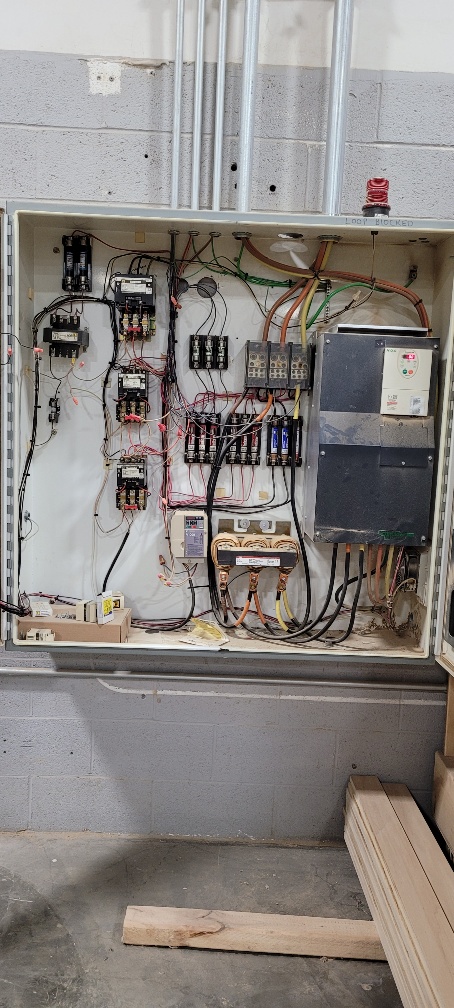

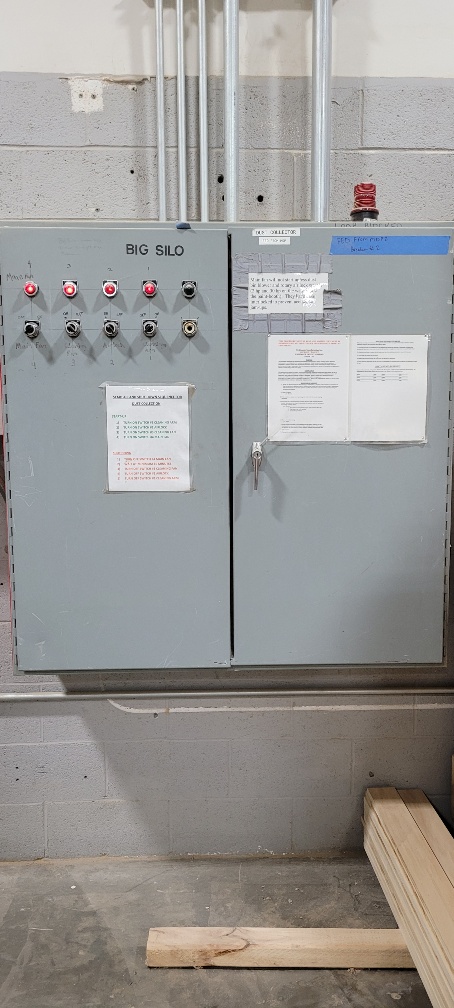

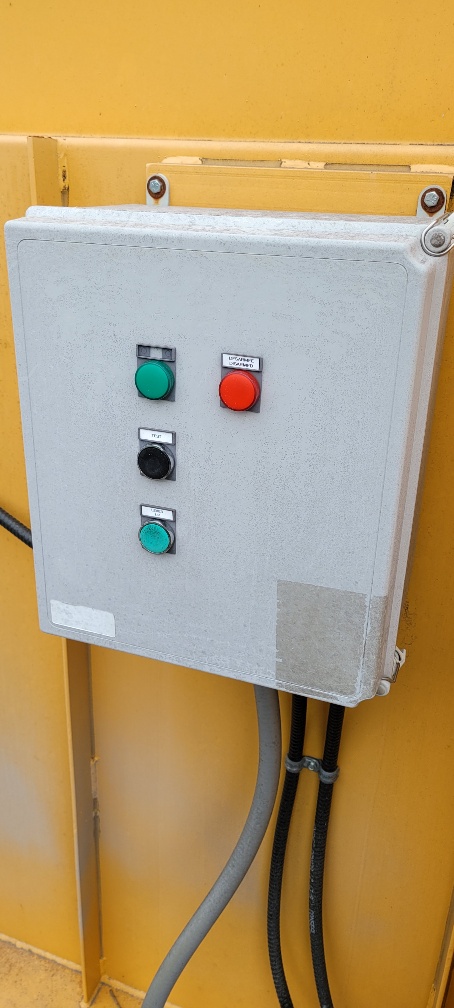

  • 460v 3ph System Control Panel with Soft Start

Fire Protection

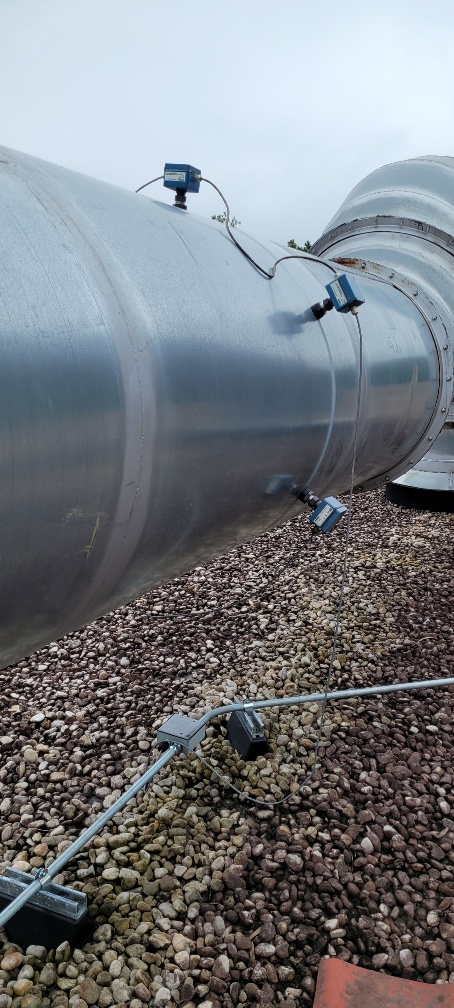

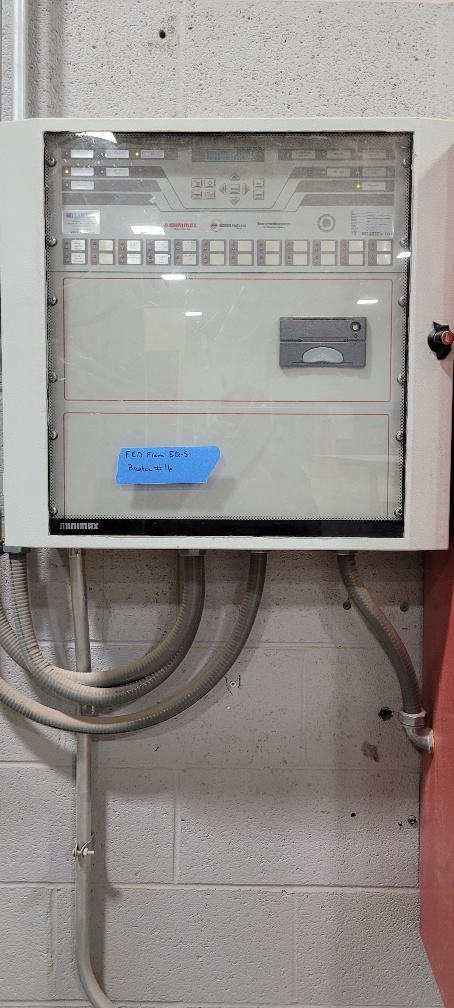

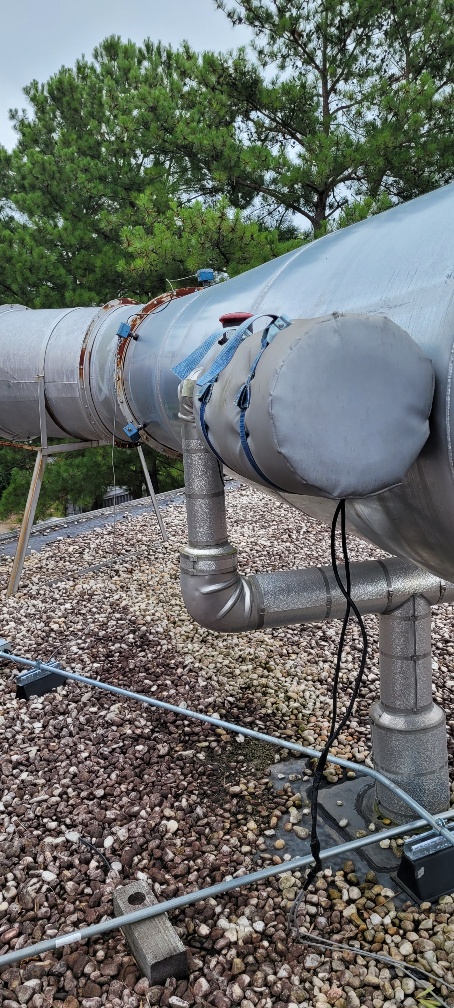

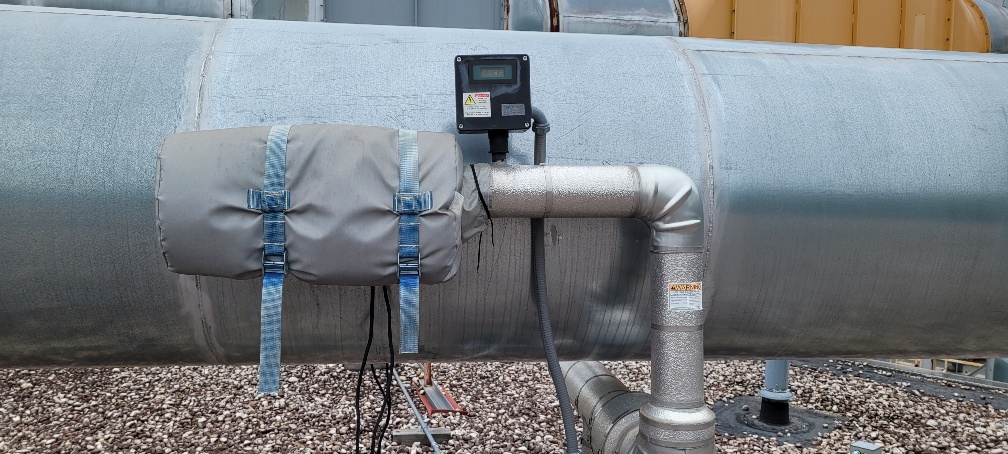

  • Mini Max/Flamex FMZ4100 Spark Detection System (  Note: Must be re-installed and certified by Flamex technician )

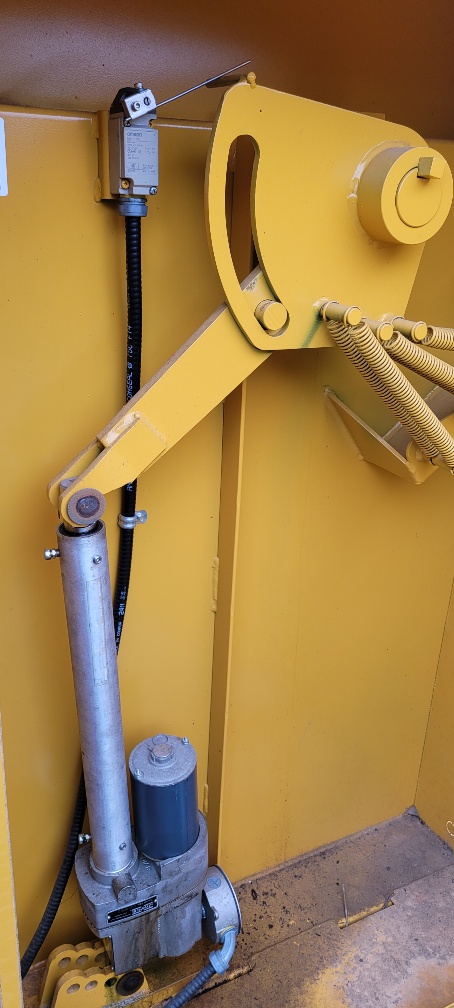

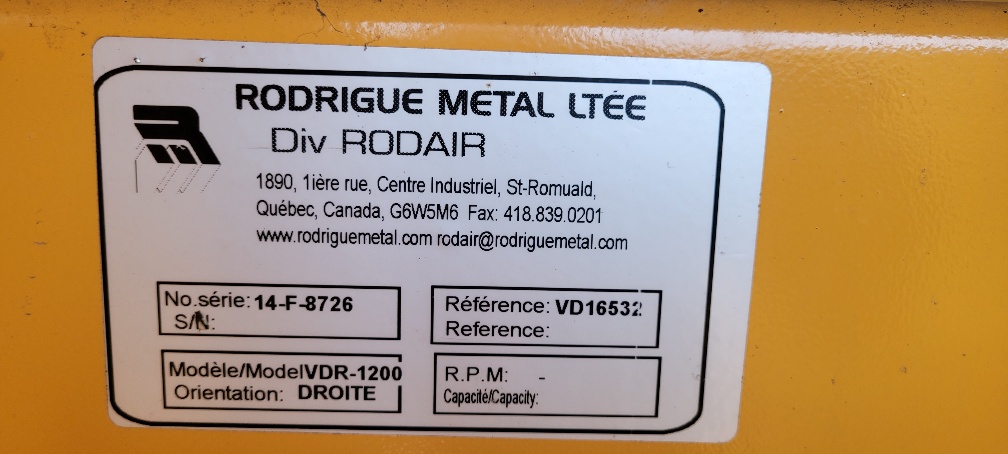

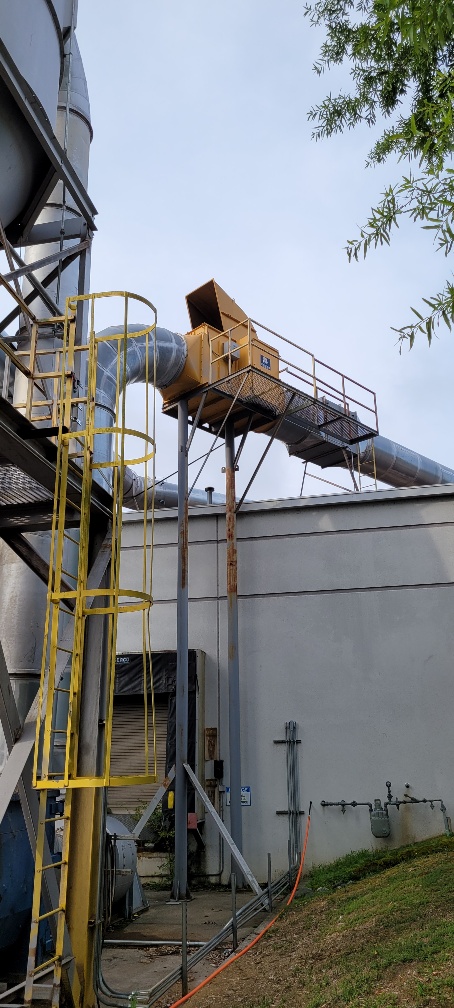

  • Rodrigue Metal VDR-1200 High Speed Abort Gate with Auto Reset and Support Stand
  • Isolation Valve on dirty side inlet

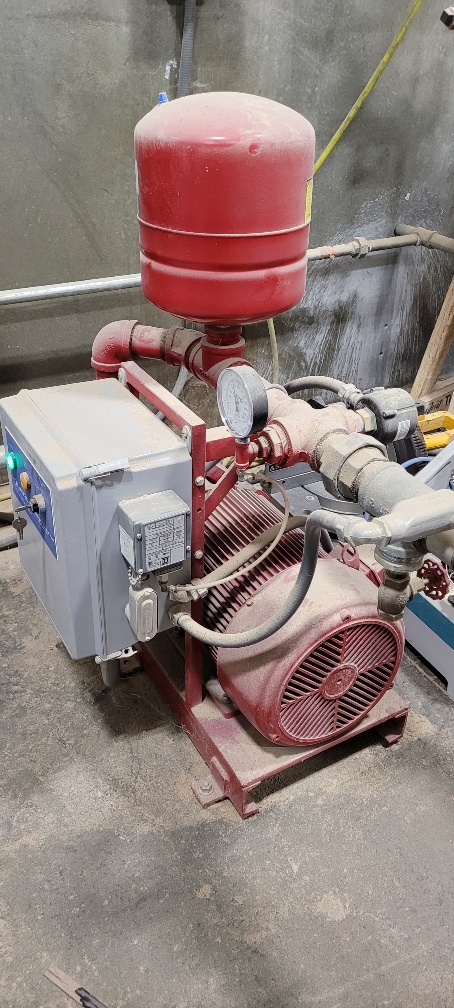

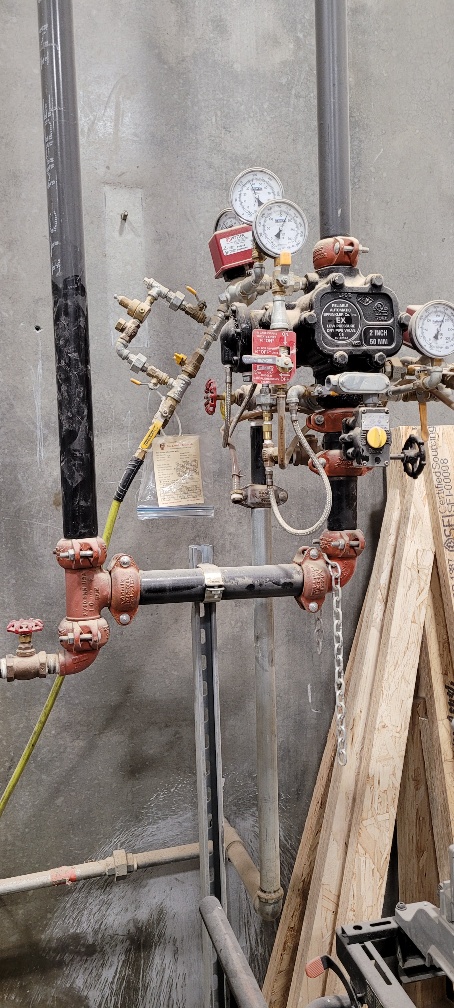

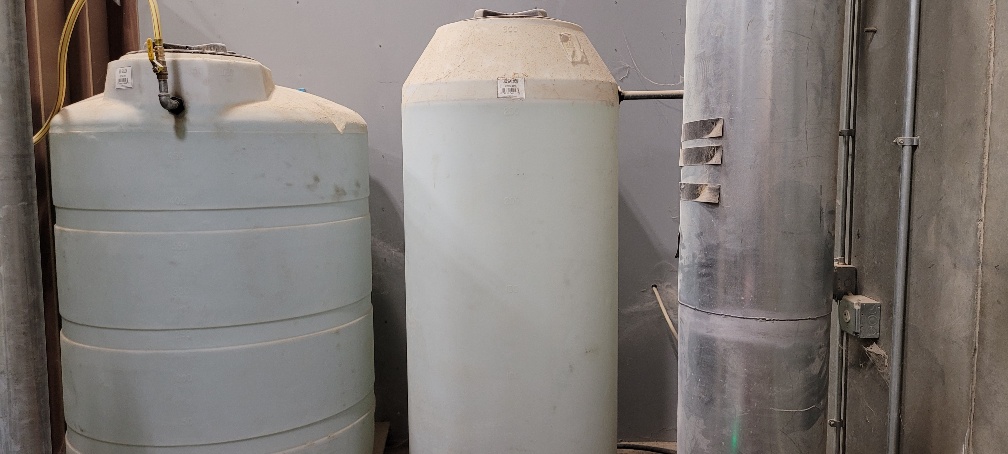

  • Back up water holding tanks for sprinkler system

System currently available for inspection under power

Professional Dismantling and Truck(s) loading available at additional cost

Location: South East    Previous Use:  Woodworking

Current Replacement Value Estimate $325,000
