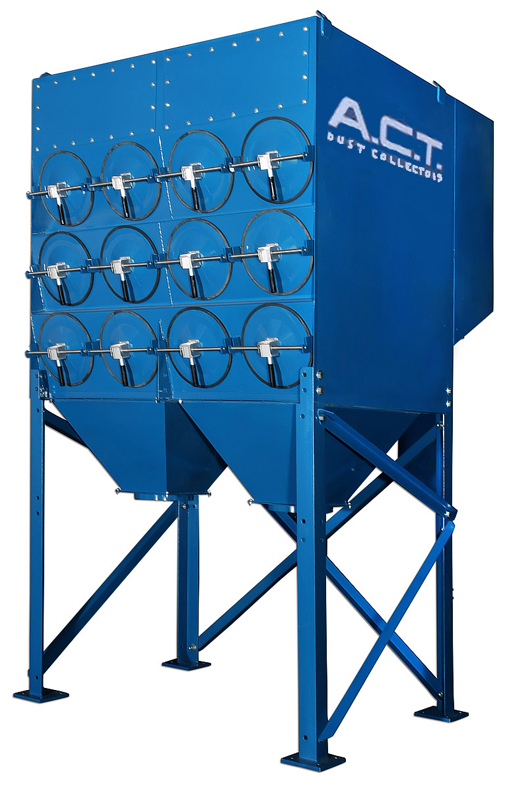

New ACT 3-24 Cartridge Dust Collector
- 10,500 CFM @ 10″ S.P. Cartridge Filter System with 24 cartridges.
- 254 sq. ft. of media each for a total of 6,096 sq. ft. of filter area.
- 2.11:1 air to media ratio.
- Filters are 99.9% efficient.
- Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (12)
- Dwyer pulse control timer board with photohelic pressure gauge.
- Discharge via air tight connections into (2) 55 gallon drums (not supplied).
- 30 HP motor with Twin Cities Fan, top or side inlet,
- Support platform and legs position the unit approximately 4′ above the ground.
- Magnetic starter not included.
- See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
