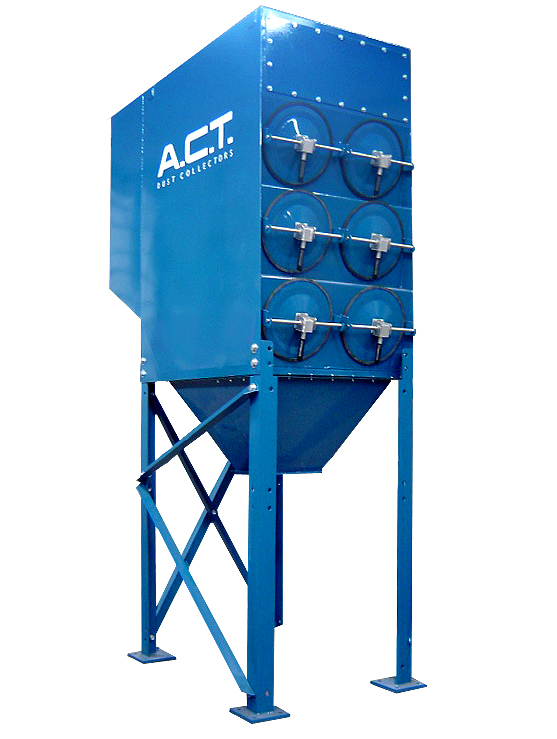

ACT 3-12 New Cartridge Dust Collector
- 5,800 CFM @ 10″ S.P. Cartridge Filter System with 12 cartridges.
- 254 sq. ft. of media each for a total of 3048 sq. ft. of filter area. 1.9:1 air to media ratio.
- Filters are 99.9% efficient. Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (6)
- Dwyer pulse control timer board with photohelic pressure gauge.
- Discharge via air tight connections into (1) 55 gallon drum (not supplied).
- 15 HP motor with Twin Cities Fan, top mounted.
- Support platform and legs position the unit approximately 4′ above the ground.
- Magnetic starter not included.
- See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
