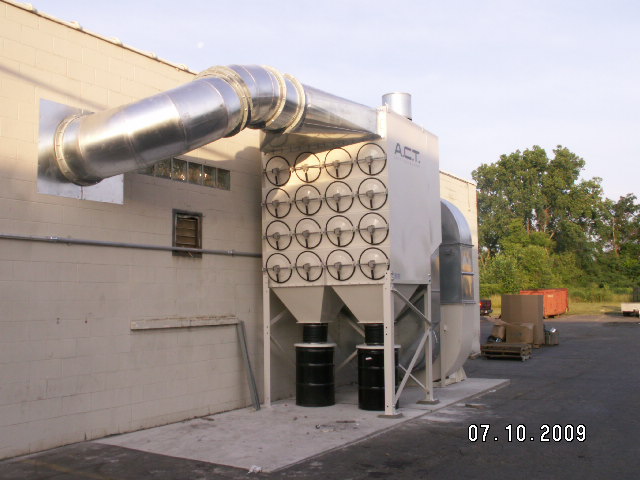

ACT 4-32 New Cartridge Dust Collector
- 16,000 CFM @ 10″ S.P. Cartridge Filter System with 32 cartridges.
- 254 sq. ft. of media each for a total of 8,128 sq. ft. of filter area. 1.96:1 air to media ratio.
- Filters are 99.9% efficient.
- Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (16)
- Dwyer pulse control timer board with photohelic pressure gauge.
- Discharge via air tight connections into (2) 55 gallon drums (not supplied).
- 40 HP motor with Twin Cities Fan, top or side inlet,
- Support platform and legs position the unit approximately 4′ above the ground.
- Magnetic starter not included.
- See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
